Complete DIY Tiki Bar Build Guide: Transform Your Patio into a Tropical Paradise

Table of Contents

Transform your boring patio into a resort-style tiki oasis with this comprehensive step-by-step guide. This project combines carpentry, plumbing, electrical work, and landscaping to create the ultimate backyard escape.

Overview of Project:

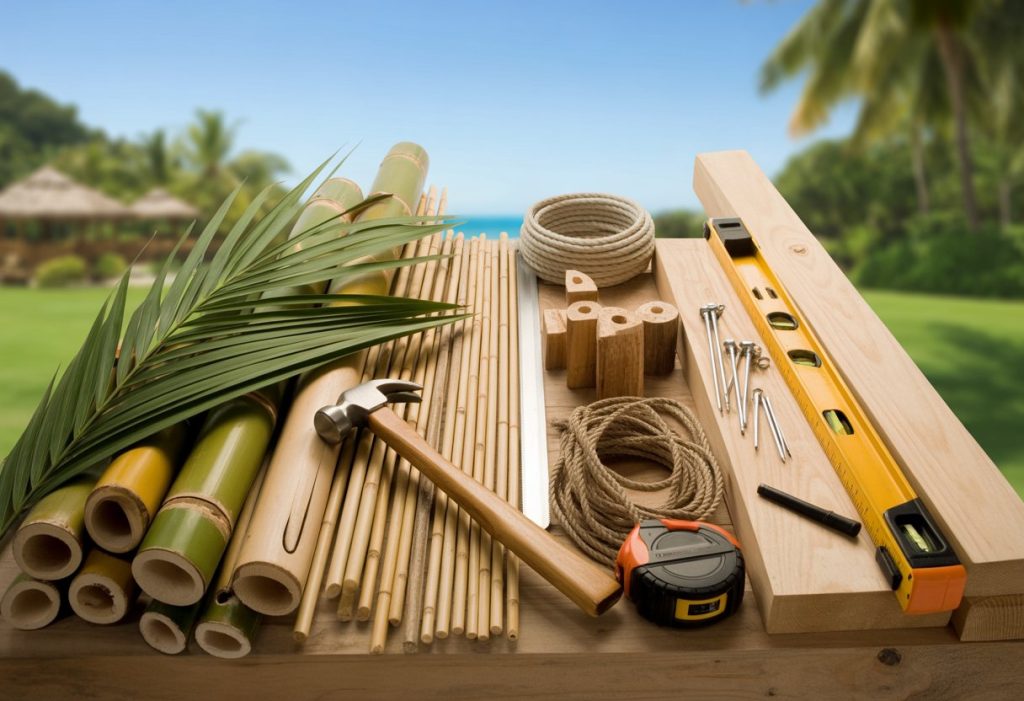

Materials and Tools Needed

Lumber and Hardware

4×4 pressure-treated posts (4 pieces, 8 feet long)
2×4 pressure-treated lumber (12 pieces, 8 feet long)
2×6 lumber for bar top support (4 pieces, 8 feet long)
3/4″ marine-grade plywood (2 sheets, 4’x8′)
Cedar dog-eared fencing boards (20 boards, 6 feet long)
Galvanized screws (2.5″, 3″, and 4″ lengths)
Pocket hole screws (1.25″ and 2.5″)
Hinges for cabinet doors
Drawer slides
Cabinet handles and hardware

Tools Required

Kreg Jig for pocket holes
Circular saw or miter saw
Drill/driver
Level (4-foot recommended)
Measuring tape
Speed square
Clamps
Router (optional, for rounded edges)
Sandpaper (120, 220 grit)

Finishing Materials

Mineral spirits
Spar urethane (marine grade)
Boiled linseed oil
Brushes and rags
Painter’s tape

Phase 1: Planning and Site Preparation

Step 1: Design Your Bar Layout

Measure your patio space and mark the desired bar location
Sketch your bar design including:
- Overall dimensions (recommended: 8′ wide x 2′ deep x 42″ tall)
- Lower cabinet height (36″)
- Upper bar overhang (12″)
- Mini fridge space (24″ wide x 24″ deep minimum)
Plan electrical and plumbing runs if needed

Step 2: Clear and Prepare the Area

Remove all existing furniture and decorations
Clean the patio surface thoroughly
Check for level using a 4-foot level
Mark the bar footprint with painter’s tape
Verify measurements and adjust as needed

Step 3: Gather Materials

Create a detailed shopping list based on your design
Order lumber delivery (typical cost: $300-500)
Purchase hardware and fasteners
Acquire specialized tools if not owned

Phase 2: Building the Foundation Structure

Bar design specs based on structure profiled in above video.

Step 4: Cut Lumber to Size

Cut 4×4 posts:
- 4 pieces at 36″ for vertical supports
- 2 pieces at 93″ for horizontal base rails
Cut 2×4 lumber:
- 4 pieces at 93″ for top and bottom plates
- 6 pieces at 21″ for cross supports
- 4 pieces at 33″ for vertical studs

Step 5: Assemble the Base Frame

Lay out the bottom frame on the patio
Use Kreg Jig to drill pocket holes on the inside faces
Assemble the rectangular base frame (96″ x 24″)
Check for square by measuring diagonals
Secure with 2.5″ pocket screws

Step 6: Install Vertical Supports

Position 4×4 posts at each corner of the base frame
Use clamps to hold posts plumb and level
Secure posts to base frame with 4″ galvanized screws
Install intermediate 2×4 studs every 24″ on center
Double-check all verticals with level

Step 7: Add Top Frame Structure

Cut 2×6 lumber for bar top support:
- 2 pieces at 96″ for front and back
- 2 pieces at 21″ for sides
Create pocket holes on underside of 2x6s
Attach top frame to vertical posts
Ensure frame is level and square

Phase 3: Plumbing Integration (Optional)

Step 8: Plan Water Supply

Locate existing water lines (PEX tubing for irrigation)
Turn off water supply at main valve
Install T-fitting to tap into existing line
Run new 1/2″ PEX tubing to sink location

Step 9: Install Sink Plumbing

Cut access hole in back panel for plumbing
Install shut-off valve near sink location
Connect flexible supply lines to faucet
Test connections for leaks
Install drain line to appropriate disposal point

Phase 4: Bar Top Construction

Step 10: Cut and Prepare Plywood Base

Measure and cut marine-grade plywood:
- Main top: 96″ x 30″ (includes 6″ overhang)
- Lower shelf: 93″ x 21″
Sand all surfaces with 120-grit sandpaper
Route edges with 1/4″ roundover bit (optional)

Step 11: Apply Cedar Overlay

Measure and cut cedar fencing boards:
- Rip boards to 3.5″ width for consistent appearance
- Cut to length allowing for overhang
Apply wood glue to plywood surface
Clamp cedar boards in place, ensuring tight joints
Secure with 1.25″ screws from underneath
Sand entire surface with 220-grit sandpaper

Step 12: Install Bar Top

Position bar top on frame structure
Secure with 3″ screws from underneath
Ensure overhang is consistent all around
Check for level and make adjustments

Phase 5: Cabinet Construction

Step 13: Build Cabinet Doors

Cut door stiles and rails:
- Stiles: 1.5″ x 3″ x door height
- Rails: 1.5″ x 3″ x (door width – 6″)
Create pocket holes on rail ends
Assemble door frames with pocket screws
Square up doors and let glue cure
Sand doors smooth

Step 14: Install Cabinet Hardware

Cut door panels to fit frame openings
Secure panels with wood glue and brads
Install hinges on cabinet doors
Mount doors to cabinet frame
Install handles and adjust door alignment

Step 15: Build Drawers

Cut drawer parts:
- Front/back: 1/2″ x 4″ x (inside width – 1″)
- Sides: 1/2″ x 4″ x (inside depth – 1″)
- Bottom: 1/4″ plywood
Assemble drawer boxes with glue and screws
Install drawer slides according to manufacturer specs
Test drawer operation and adjust as needed

Phase 6: Finishing and Protection

Step 16: Apply Protective Finish

Mix 3-2-1 finishing solution:
- 3 parts mineral spirits
- 2 parts spar urethane
- 1 part boiled linseed oil
Apply thin, even coats with brush
Allow 24 hours drying time between coats
Apply minimum 3 coats for outdoor protection
Sand lightly between coats with 220-grit

Step 17: Install Electrical Components

Run 12-gauge wire from house panel to bar area
Install GFCI outlet in weatherproof box
Mount ceiling fan with lighting
Install LED strip lighting under bar overhang
Connect remote control system for convenience

Phase 7: Tiki Atmosphere Creation

Step 18: Install Tiki Masks and Totems

Purchase 40-inch tiki masks (4 pieces)
Mount masks at each corner of bar structure
Use galvanized screws appropriate for mask material
Ensure masks are level and properly secured

Step 19: Create Video Porthole Feature

Purchase authentic porthole from marine supplier
Install LCD monitor behind porthole glass
Connect media player with 4K marine life videos
Set up continuous loop playback
Test system and adjust brightness for ambiance

Step 20: Add Tiki Lighting

Install tiki torches around perimeter:
- 2 tiki face torches near bar
- 12 traditional tiki torches for border
Add bamboo border lights for pathway
Install solar accent lighting as needed
Test all lighting systems

Phase 8: Tropical Landscaping

Step 21: Install Planter Systems

Position Moai/Easter Island planters strategically
Add tiki face planters for variety
Ensure proper drainage in all planters
Fill with appropriate potting soil

Step 22: Plant Selection and Installation

Choose tropical plants suitable for your climate:
- Palm varieties: Majesty Palm, Windmill Palm, Ponytail Palm
- Large foliage: Elephant Ear varieties, Monstera Deliciosa
- Flowering plants: Plumeria, Pink/Red Hibiscus
- Accent plants: Crotons, Ti plants, Golden Pothos
Plant in MG Palm, Cactus & Citrus soil
Water thoroughly after planting
Mulch around plants to retain moisture

Step 23: Establish Watering System

Extend drip irrigation to new plantings
Install timers for automated watering
Add soaker hoses for larger plants
Test system and adjust flow rates

Phase 9: Bar Stocking and Accessories

Step 24: Install Bar Equipment

Mount four-bottle liquor dispenser
Install mini refrigerator in designated space
Add sink and faucet (if plumbing installed)
Mount neon cocktail signs
Install sound system speakers

Step 25: Add Tiki Accessories

Stock tiki mugs and glassware
Install parrot bottle holder
Add Captain Morgan rail mat
Display tiki-themed surfboard
Position conversation pieces (pirate skull, etc.)

Step 26: Final Touches

Install pull-chain ceiling fan with parrot motif
Add bamboo wind chimes
Position portable tiki bar cart for extra storage
Install weatherproof storage for cushions
Add emergency lighting for safety

Phase 10: Maintenance and Care

Step 27: Establish Maintenance Schedule

Weekly: Clean bar surface, water plants, refill tiki torches
Monthly: Check and tighten hardware, prune plants
Seasonally: Reapply finish to wood surfaces, fertilize plants
Annually: Deep clean all components, inspect electrical connections

Step 28: Seasonal Plant Care

Research cold protection for tropical plants
Plan for plant relocation or covering in winter
Establish pruning schedule for optimal growth
Monitor for pests and diseases

Troubleshooting Common Issues

Structural Problems

Wobbly bar: Check all connections and tighten screws
Uneven surfaces: Adjust leveling feet or shim as needed
Door alignment: Adjust hinges and check frame square

Plant Care Issues

Yellowing leaves: Usually overwatering or poor drainage
Stunted growth: May need fertilizer or larger container
Pest problems: Use appropriate organic treatments

Budget Breakdown

Basic Structure: $400-600

Lumber and hardware
Basic tools (if not owned)
Finishing materials

Electrical and Plumbing: $200-400

Wiring and outlets
Plumbing supplies
Professional consultation if needed

Tiki Decor and Accessories: $300-500

Masks and totems
Lighting systems
Bar accessories

Landscaping: $400-800

Plants and planters
Soil and amendments
Irrigation supplies

Total Project Cost: $1,300-2,300

Safety Considerations

Electrical: Use GFCI protection for all outdoor outlets
Fire safety: Keep fire extinguisher accessible, maintain safe distances from tiki torches
Structural: Ensure all connections are secure and inspected regularly
Weather protection: Secure loose items during storms

This comprehensive tiki bar project transforms an ordinary patio into an extraordinary tropical escape. The combination of solid construction, authentic tiki styling, and lush landscaping creates a resort-quality experience in your own backyard. Take your time with each phase, and don’t hesitate to modify the design to suit your specific space and preferences.

Remember to check local building codes before beginning construction, and consider consulting professionals for electrical and plumbing work if you’re not experienced in these areas. With patience and attention to detail, you’ll create a stunning tiki oasis that will be the envy of your neighborhood.

How to Build a Tiki Hut: In-depth DIY Steps to Create Your Backyard Paradise

You don’t need to be a contractor to get started. If you break the process down step by step, you’ll have your own tiki hut ready for your next backyard party.

From setting up a strong frame to picking the right roof materials, you’ll learn what you need to make your vision real.

Planning Your Tiki Hut Project

Before you start building your backyard oasis, it’s smart to plan ahead. Picking the right spot, knowing the local rules, and matching the design to your needs helps your tiki hut stay safe, comfortable, and durable.

Selecting the Ideal Location

Pick a flat spot in your backyard that has good drainage. Avoid areas under big trees that drop leaves or branches, since that’ll just make things messier and could damage your hut.

Think about how you’ll use the space—close to the pool for shade, or near the patio for outdoor dining. Make sure there’s enough room around it for airflow and easy access.

If you want electricity, pick a spot near your power source. It’s a pain to run long cords later.

Checklist:

Level ground
No overhanging branches
Easy access from your house
Enough space for future upgrades

Checking Local Codes and Permits

Check with your city or county office about building codes and permits before you start. Rules vary—some places want you to get a permit, others have restrictions on thatch or structure height.

In Florida, for example, some counties only allow tiki huts if you use traditional building methods or follow fire safety rules. Get the rules in writing from your local office so you don’t get burned by surprise regulations.

If you skip this step, you might have to change or even remove your tiki hut later. That’s just money down the drain.

Key steps:

Visit or call your city’s building department
Ask about rules for detached shade structures
Find out if your neighborhood has special rules
Get approval in writing

Choosing the Right Tiki Hut Design

Decide what you want from your tiki hut. Is it a quiet lounge, a party bar, or a shady dining spot?

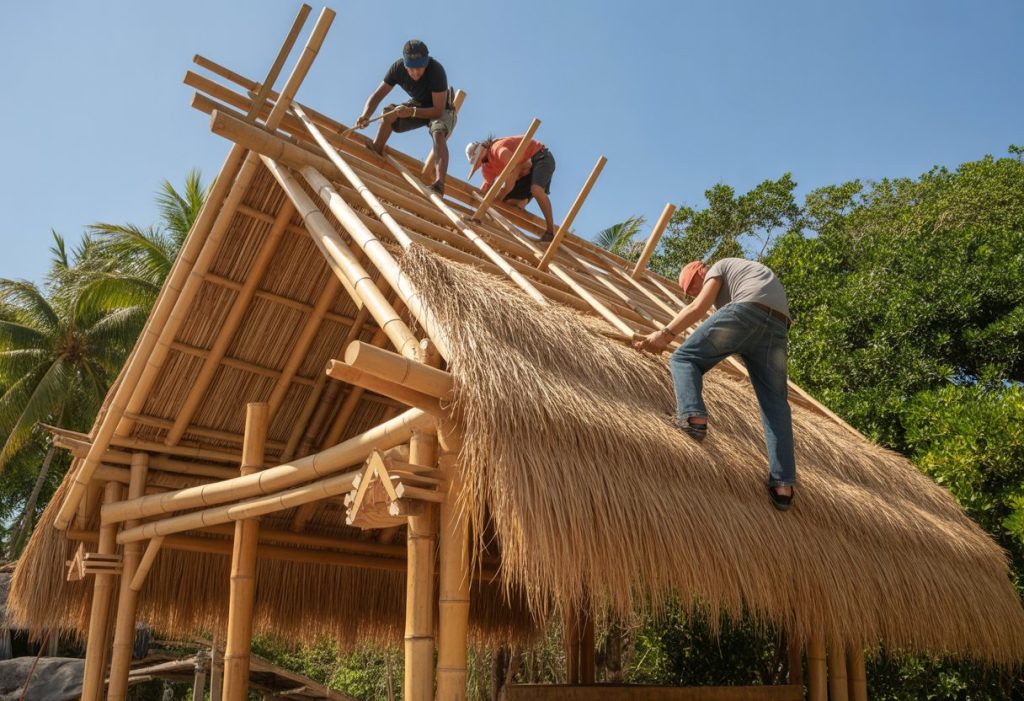

Your plans will affect the size, shape, and roof style. Traditional tiki huts use cypress or treated pine for support poles and thatched roofing for a tropical vibe.

Synthetic thatch lasts longer, but it’s not quite as authentic. Consider extras like:

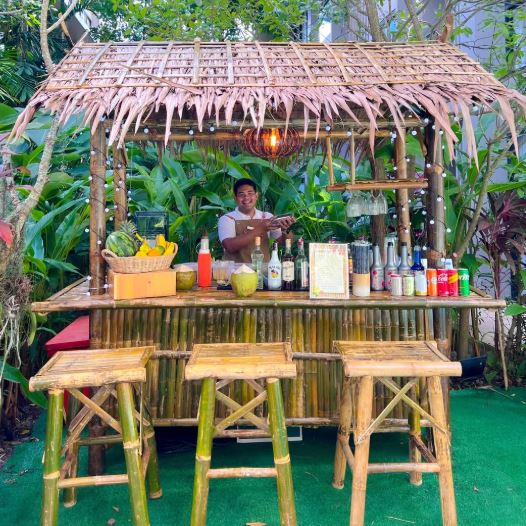

Built-in bar area
Bamboo railings
Hanging lanterns or string lights
Space for seating or storage

Sketch your ideas or poke around online for inspiration. Pick a design that fits your yard and your budget.

Materials and Tools for Building a Tiki Hut

You’ll need the right supplies and gear to get your tiki hut built. Choosing good materials and tools helps your hut last and look great in your yard.

Essential Materials: Poles, Thatch, and Hardware

For the main frame, use strong, rot-resistant poles. Cypress, cedar, or pressure-treated pine do the trick.

Some folks go with bamboo poles for a more tropical look, but bamboo needs a little extra care if your climate is wet. The roof usually uses thatch—palm thatch feels authentic, but synthetic thatch or synthetic palm thatch lasts longer and shrugs off harsh sun and rain.

Decide based on your climate and how much maintenance you want. You’ll also need plywood or wood planks for the roof base, plus galvanized screws, nails, and steel brackets to hold it all together.

Bamboo mats or panels can cover posts or act as walls if you want a little privacy or extra style.

Here’s a quick list:

Material	Use
Wood/Bamboo poles	Main support structure
Palm or synthetic thatch	Roofing
Plywood/wood planks	Roof base
Screws/nails/brackets	Assembly
Bamboo panels/mats	Decoration/covers

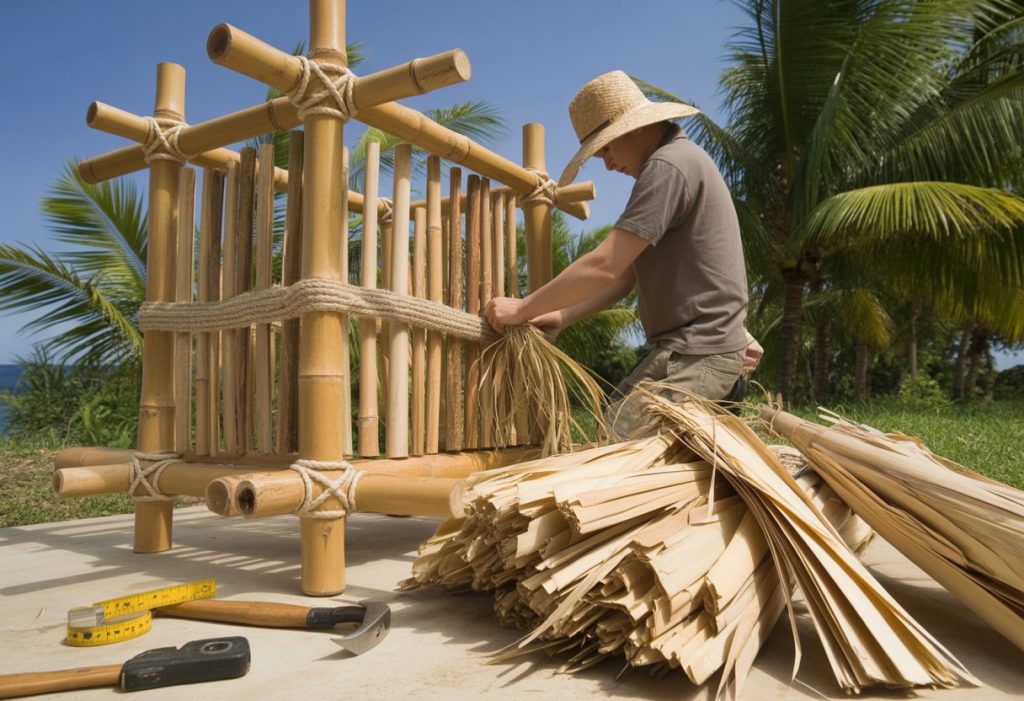

Tools You Need: From Hand Saws to Ladders

Simple, solid tools make building a tiki hut so much easier. A hand saw or circular saw lets you trim wood and bamboo on site.

You’ll want a measuring tape and level to keep things straight. A post hole digger and shovel help you set the support poles deep in the ground.

Use a hammer or nail gun to join wood and bamboo fast. Secure the posts with concrete, mixing it in a bucket or wheelbarrow.

A ladder comes in handy for the roof and high beams. Don’t forget work gloves and safety goggles—splinters and sharp tools are no joke.

Here’s a checklist:

Hand saw or circular saw
Measuring tape and level
Hammer or nail gun
Post hole digger and shovel
Ladder
Work gloves and goggles
Concrete, bucket/wheelbarrow for mixing

Building the Frame and Structure

The frame gives your tiki hut its shape and strength. Getting this part right is key if you want your tiki hut to last through sun, wind, and rain.

Laying the Foundation and Setting Posts

Pick a level spot for your build. Clear away grass and debris, then mark the corners with stakes and string.

Measure the distance between each corner to make sure things are square. You’ll need strong posts to keep the frame steady.

Dig post holes with a shovel or post hole digger. Go at least 2 feet deep for good anchoring, and toss some gravel in the bottom for drainage.

Stand your main posts (thick bamboo or treated lumber) upright. Use a level to check they’re straight, then pour concrete around the base and let it set.

This step keeps the posts from leaning or shifting. Leave a gap for an entry if you want a door, and make sure all posts are the same height so your roof sits evenly.

Constructing the Support Beams

Once the posts are solid, add the horizontal support beams. These connect the posts and form the skeleton for the roof and walls.

Measure between posts and cut your material to size. Treated lumber is strong and weatherproof, but thick bamboo works for a classic look.

Use heavy-duty screws, brackets, or bolts to attach beams to the tops of the posts. Add cross beams perpendicular to the main beams for extra strength.

If you want a pitched or slanted roof, angle the beams so rain runs off. Double-check everything with a level.

If you live in a windy area, use extra bracing. Step by step, you’ll end up with a solid frame and a safe place to finish your tiki hut.

Installing the Roof

The roof is a big step—it gives shade and makes the structure feel finished. You’ll have to choose between natural or synthetic thatch, and the way you install it matters for how long it lasts.

Thatch Roofing Installation Steps

Start by making sure your roof frame is strong and even. Use bamboo, wood, or pressure-treated lumber for support.

Begin at the lowest edge of the roof and work upward when adding thatch. Overlap each row to keep water out and block the sun.

Attach thatch panels or bundles with galvanized staples, zip ties, or wire, depending on your frame. Press each layer down so it lays flat and looks tidy.

Cover the very top with a ridge cap or extra thatch to prevent leaks. Check for gaps as you go—natural and synthetic thatch both need a tight, even layout for good coverage.

For round or peaked roofs, angle the thatch downward to help rain run off. Every so often, check for loose spots or wear—small fixes now will keep your roof looking good for years.

Comparing Natural vs Synthetic Thatch Options

Natural thatch roofing usually comes from dried palm leaves, cypress, or reeds. It gives you that classic tropical vibe and offers decent insulation.

But honestly, it only lasts about 3–5 years before you’ll need to swap it out. Rain, harsh sun, and wind can wear it down pretty fast.

You might also have to treat it for mold or pests. It’s not exactly low-maintenance.

Synthetic thatch uses weather-resistant materials like plastic or PVC. It’s designed to mimic real palm or reed but sticks around for 10 years or more—nice, right?

Maintenance is minimal. Synthetic palm thatch is fire-retardant and doesn’t fade much, even in heavy sun or rain.

Honestly, folks in places with wild weather often go for synthetic.

Check out the table below for a quick comparison:

Feature	Natural Thatch	Synthetic Thatch
Look/Feel	Authentic	Looks real, feels similar
Lifespan	3–5 years	10+ years
Maintenance	High	Low
Weather Resistance	Fair	Excellent
Cost	Lower upfront	Higher upfront, lasts longer

Adding Customized Details

Making your tiki hut personal really sets it apart. The right details add comfort, function, and that unmistakable tropical look.

Decorative Bamboo Railings and Accents

Bamboo railings bring in that island feel immediately. Just attach bamboo poles along the hut’s edges or around the seating area—weather-resistant screws or ties work best.

Vertical slats can serve as railings, while horizontal ones look great for trimming. You can cut bamboo to fit posts or create patterns like crosshatches or zig-zags.

Don’t forget to sand the edges so no one gets splinters. A coat of outdoor varnish helps bamboo survive sun, rain, and bugs.

Some ideas:

Frame windows or serving areas with bamboo borders.
Use split bamboo for ceiling covers.
Add little bamboo shelves for cups or decor.

Accents like carved tiki faces or quirky wooden signs can really finish things off.

Lighting and Tiki Torches

You’ll want good lighting for evenings and safety. Tiki torches, string lights, or lanterns all set a warm, lively mood.

Solar-powered or battery lights make setup so much easier—less hassle with wires.

Stick tiki torches at each corner or along the path to keep things bright. String lights can hang from the ceiling or wrap around bamboo poles for extra fun.

Some quick safety tips:

Keep torches away from the roof and anything flammable.
Anchor torches in sand-filled buckets or sturdy holders.
Go for LED lights if you want cooler, low-maintenance options.

Dimmable or color-changing bulbs? Always a hit for parties.

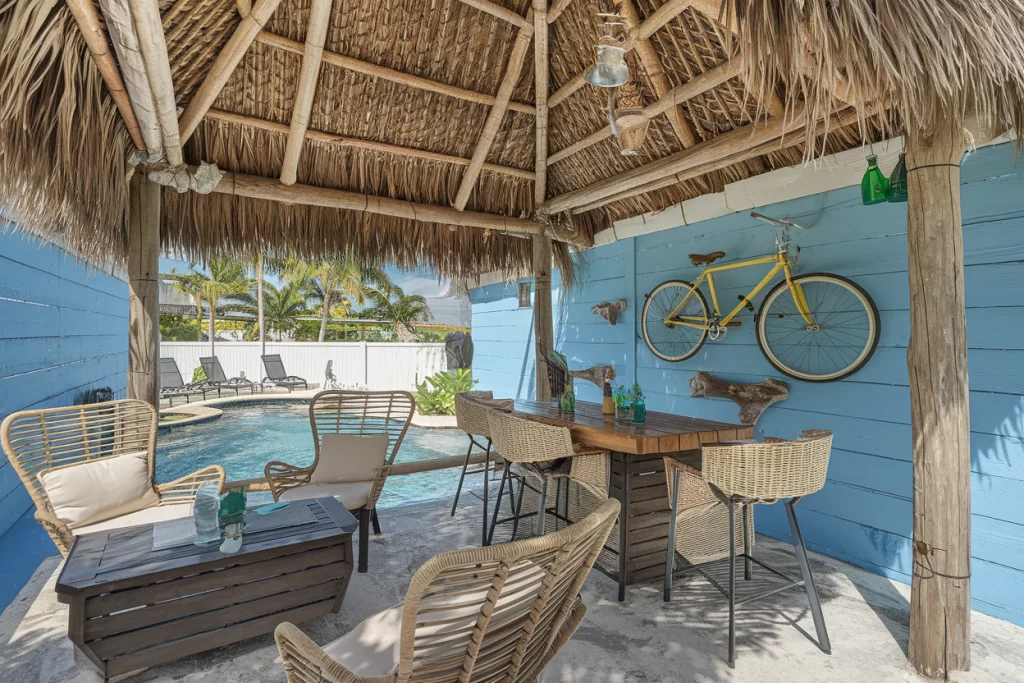

Integrating a Tiki Bar

A built-in tiki bar turns your hut into a real hangout spot. Use weather-resistant wood or bamboo for the bar top and shelves.

It’s smart to put the bar near an entrance or open wall, so guests can grab drinks easily. Add a countertop for mixing and lower shelves for cups, bottles, and supplies.

Hooks for bar tools or hanging baskets for fruit make things handy. Think about these features:

Stools made from palm wood or bamboo
A drip-proof mat on the counter
Open storage for tropical decorations, snacks, or mixers

Personal touches like a custom sign, fun glasses, or a mini fridge make the bar area feel special.

Maintaining Your Tiki Hut

Keeping up with regular care is the best way to protect your tiki hut. If you focus on both the roof and the frame, you’ll prevent damage and get way more years out of it.

Caring for Thatch and Bamboo

Clean your palm thatch or natural roofing once a month. Sweep away fallen leaves, branches, and any loose or moldy bits.

This stops mold and moisture from taking over. Bamboo poles don’t need much—just wipe them with a soft cloth to get rid of dirt and dust.

If you’re near the coast, rinse bamboo with fresh water now and then to clear off salt. Check the thatch for thin spots. Patch up worn areas with new material if you spot them.

Spray on some UV protectant to help with sun damage, especially if you live somewhere sunny like Florida. If you notice pests, treat both bamboo and thatch with insect repellent—natural options are safer for you and the environment.

Seasonal Inspections and Repairs

Do a full inspection every spring and fall. Look for cracked, broken, or loose bamboo poles.

For thatch, watch for sections that are thinning, loose, or moldy. After storms or hurricanes, check for extra damage.

Use this inspection time to tighten fasteners, nails, or rope lashings holding your structure together. Here’s a quick checklist:

Check for mold and clean it up if you spot any
Patch thin or missing thatch
Tighten loose bamboo joints
Replace damaged parts right away
Treat with water repellent or UV spray if needed

If you’re facing big repairs or a full rethatching, maybe call in the pros. Honestly, keeping up with these chores just makes life easier and your tiki hut will thank you for it—probably.
